566 cm
(=Outer dimension including metal sheeting)
(+32 cm including rain gutters)
1,517 cm
(=Outer dimension including metal sheeting)
The length can be shortened during installation.
277 cm (side) 340 cm (ridge)
Also possible to build with a side height of 300 cm and a ridge height of 237 cm.
0.72 kN/m² (EN 1991-1-4)
in combination with 0.85 kN/m² snow load
DIN EN 1991-1-3:2010-12 and DIN EN 1991-1-3/NA:2010-12 compliant
0,72 kN/m² (EN 1991-1-4)
in combination with 0,85 kN/m² snow load
265 x 275 cm (H x W), clearance 255 cm, color RAL 9003 (signal white), including latch for padlock (not included), 0.45 mm steel, non-insulated, manual operation, polyester coating, model Janus 650.
220V drive unit with LED lighting + 2x remote control + complete installation set (suitable for retrofitting)
Opening dimensions 209 x 93 cm, color RAL 9002 (grey white), including door handle with backplate and integrated lock (1 key, prepared for 17mm cilinder). All-steel door with rock wool filling, sheet thickness 0.9 mm, with four-sided EPDM sealing rubbers. Direction of rotation can be executed both left and right.

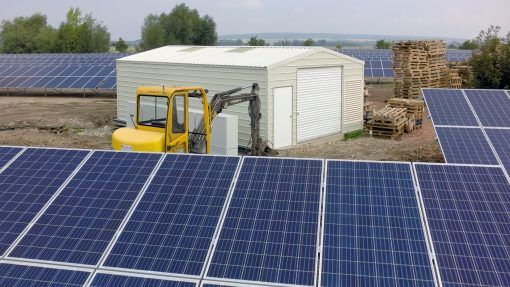

The storage building comes standard with a roll-up door and a man door in the front wall.
High tensile steel S320, 0,5 mm (NEN-EN 10169), color RAL9001 (cream white). Electrolytically galvanized (Galvalume), polyester topcoating, innerside wall panels RAL 7035 (light grey), maintenance free.
8 transparant PETP glass fiber reinforced roof panels, 100 x 100 cm per panel.
High tensile steel S355J2, main profiles 50 x 50 x 4 mm, electrolytically galvanized, truss distance 1,50 meter.
Set of steel roof gutters and downspouts in the colors RAL 9022 (pearl light grey) or RAL 7016 (anthracite), width of gutter 125 mm, diameter of downspout 80 mm.
For a permanently installed building
Option 1. Concrete foundation
Concrete (strip) foundation to be prepared according to Kroftman drawings (included). Base rail of building is bolted with concrete anchors M12x180/055 (included). The concrete surface needs to be perfectly straight to obtain a watertight joint of the walls.
Option 2. Prefab concrete slab elements
Construct a sandbed to the frost line containing a spacious floor of prefab concrete panels (concrete slab elements) of 16 cm minimum. The soil profiles of the storage building need to be fastened with concrete anchors M12x180/055 (included).
This option is economical and fast. The surface must be flat, with a permitted slope of max. 1 cm/m1 in one direction only. A curved surface is not allowed. A slope in the installation surface must be filled out during installation, resulting in additional work.
For a temporarily or semi-permanently installed building
Earth anchors 1,100 x 25 mm for anchoring on pavement, asphalt or hard gravel. The installation surface must be straight with a maximum slope of 1cm/m1 limited to one direction. A curved surface is not allowed. A slope in the installation surface must be filled out during installation, resulting in additional work. Base rail holes of ∅30 mm are to be drilled on-site. (adequate hole saw is included).
Installation of your steel building with earth anchors saves time and money and is the perfect solution when only temporarily constructions are allowed or needed.
4 days
Some parts need to be made to fit on-site.
2.450 kg, 330 x 120 x 130 cm (1 pallet)
Construction drawings, structural calculations in accordance with EUROCODE and assembly manuals are included free of charge.
Metal sheeting and gutter system:
10 years descending warranty against rust perforation and discoloration
Steel structure:
10 years descending warranty against rust perforation
Skylights:
10 years descending warranty against breakage
Roll-up door and man door:
10 years descending warranty against rust perforation and discoloration, 1 year mechanical warranty. Electric opener: 2 years or 5.000 cycles
Assembly:
6 months warranty on correction installation of the supplied materials if assembled by Kroftman (or its partners).
- Electric opener (including 2 remote controls)
- Earth anchors
- Gutter system in the colors RAL 9022 (pearl light grey) or RAL 7016 (anthracite grey)
