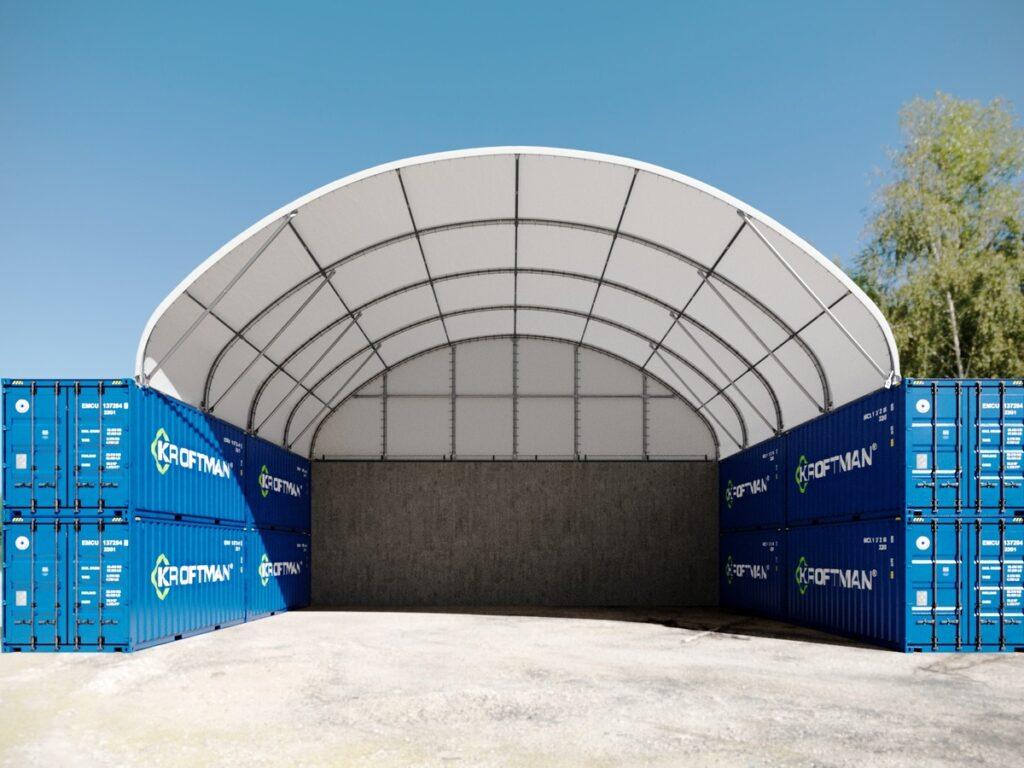

Container shelter 15x12m Arched Roof

CTA1512
Coming soon
Coming soon

Container shelter 15x12m Arched Roof

Container shelter 15x12m Arched Roof

From € 11.570,00 (ex. VAT)€ 13.999,70 (incl. VAT)11570

In stock
CTA1512

From € 11.570,00 (ex. VAT)€ 13.999,70 (incl. VAT)11570

Customize your product:

Call us for product advice: +31 26 700 9700
++++++++++++++++

DOWNLOAD
TECHNICAL
DOCUMENTATION

Container shelter 15x12m Arched Roof
CTA1512

    You can receive the build book with all required technical calculations either digitally or physically. You will then receive an email about submitting your data for sending the book.

    Container shelter 15x12m Arched Roof
    327174
    11570
    13999.7
    Download product sheet
    Width
    1.500 cm
    Length
    1.220 cm (for containers of 40 ft)
    Height
    ~470 cm (ridge)
    Ridge height including containers
    ~730 cm (760 with High Cube),
    ~990 cm (1050 with High Cube),
    Maximum snow load
    0,3 kN / m².

    If necessary, the container shelter can also be built in areas with a higher snow load if you can ensure that the 20 kg / m² limit is not exceeded (for example, by heating the shelter in winter or clearing the roof from snow).

    Maximum wind load
    0,50 (0,60) kN/m² (EN13782, temporary construction)
    Fastening
    Option 1: Fastening brackets (not included) for fast and damage-free installation. Bracket depth 50 - 80 mm.
    Option 2: Direct fastening on the containers by bolting or welding
    Front/back walls (optional)
    The PVC front / back wall
    Colors
    White
    Average assembly time for DIY with 4 persons
    - shelter: 2 days
    - front or back wall: ½ day per wall

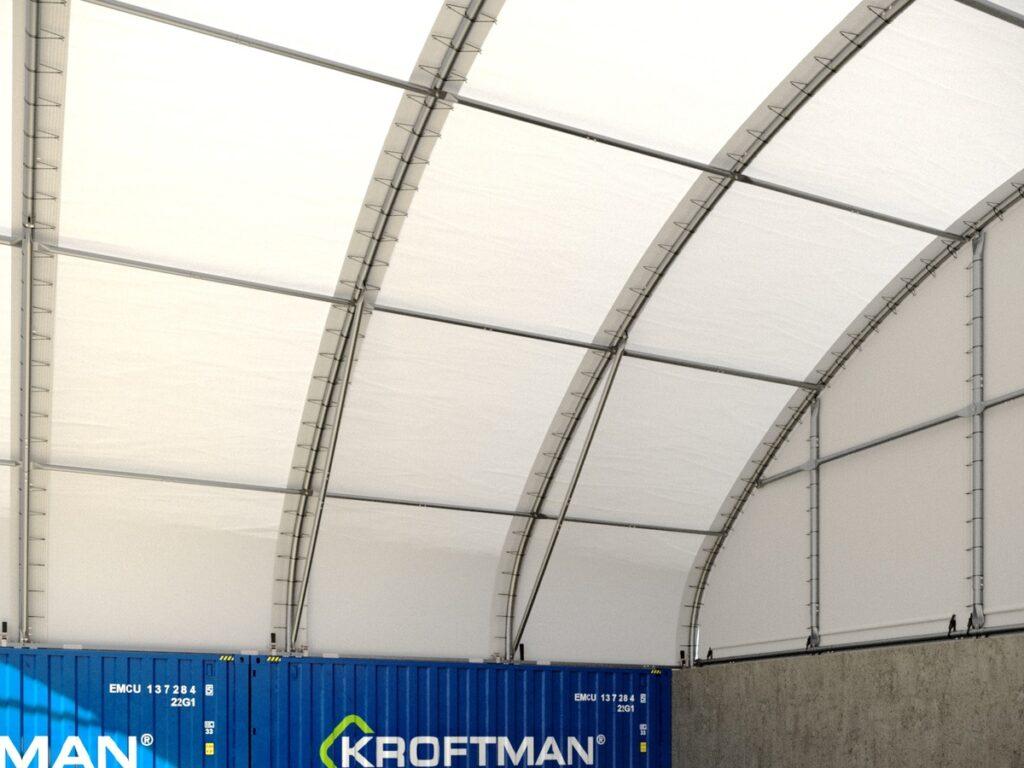

    Steel structure
    Steel S355, galvanised, main profiles ∅102 x 3 mm
    Fabric
    PVC 610 g/m²
    - Tensile strength warp: 2965 N
    - Tensile strength weft: 2282 N
    - Tear resistance warp: 456 N
    - Tear resistance weft: 314 N
    - Flame retardant: according to DIN 4102-1 class B2
    - Temperature resistance: -30 - +70 °C
    Shipping weight and dimensions (L x W x H)
    In 4 crates + 2 boxes:
    - ...x...x...cm ...kg (steel structure A)
    -...x...x...cm ...kg (steel structure B)
    - ...x...x...cm ...kg (fabric 2x)
    - ...x...x...cm ...kg (Extension kit 1206-1506 2x)

    Front/back wall (per wall):
    - ...x...x... cm, ... kg (crate) (steel structure)
    - ...x...x... cm, ... kg (box) (fabric)

    Documentation
    Construction drawings, structural calculations in accordance with EUROCODE / EN13782 and assembly manuals are included free of charge.
    Warranty
    Steel structure:
    - 10 years descending warranty against rust perforation

    Fabric:
    - PVC: 10 years descending warranty

    Options
    - Fastening brackets for fast and damage-free installation
    - Front/back walls
    - Fabric color: white
    - Anchoring set for securing the container
    Note
    The standard structural calculations apply only to installation on containers stacked up to two high. Installation on more than two stacked containers is at your own risk. Please note that the product warranty will be void in such cases.
    Download product sheet

    Yes, note: PVC tarpaulin is more fire-resistant than PE tarpaulin. In terms of fire safety, PVC clearly has the advantage. Although it is unlikely that either PE or PVC will catch fire, for example, when using an angle grinder, PE will continue to burn once it is ignited. PVC, on the other hand, is flame-retardant and self-extinguishing, providing extra safety.
    Watch the video: https://www.kroftman.com/nl-nl/pe-of-pvc/

    It is possible to combine containers with a height difference of up to 20 cm with a shelter. The larger the shelter, the more tolerance is allowed for the height difference. Ensure that you measure or check the gap at the top of the containers to ensure they are correctly positioned. Consult the installation manual for this. If you also use walls, it is important that the dimensions deviate minimally; otherwise, the walls may not fit properly. With only a shleter, the tolerance for deviations is greater, but with walls, precision is essential.

    The European standard EN13782 sets requirements for the design and construction of temporary structures, such as container shelters. This standard ensures that the shelter is safe and stable, even under changing weather conditions. It includes material specifications, calculations of wind and snow loads, stability checks, and the strength of connections.
    Our products are designed and tested according to this standard. This means that you are assured of a safe and reliable shelter that complies with European guidelines.
    More information: https://www.kroftman.com/en-eu/safety-first-what-you-need-to-know-about-en13782-for-your-container-shelter/

    In addition to a scissor lift and/or scaffold, you will need small tools such as a socket set with individual wrenches or an impact drill.

    Yes, the strength calculations of the products can be found in the construction manual. This book contains all the technical details and calculations necessary for the safety and stability of the shelters. You can request the construction manual free of charge, both online and physically.
    https://www.kroftman.com/nl-nl/quality-and-conformity/

    The tarps are packaged in boxes, while the frames are delivered in steel and wooden crates. Keep the packaging to store or transport the product later. If you do not reuse it, the packaging can be disposed of.

    We choose steel for its strength and durability. Steel wears less, is more resistant to the elements, and lasts longer. Additionally, steel is much more cost-effective, saving money without compromising quality. It meets European standards and is also a more sustainable choice, making it the logical option for reliability and efficiency.
    Watch the video: https://www.kroftman.com/en-eu/why-do-we-use-steel-instead-of-aluminium/

    Yes, it is possible to order individual parts if something breaks on your shelter. In most cases, damage to the shelter can be repaired by replacing a part. We offer additional parts in sets for this purpose. You can download the overview of these additional parts per product from our website. Unsure about the right solution? Then, feel free to contact us.

    Yes, all our standard products come with structural calculations, which are available upon request at no additional cost.
    We collaborate with specialized engineers to ensure that all calculations comply with the EN13782 standard. This guarantees broad acceptance across Europe and internationally.
    To maintain their legal validity, we provide these documents only in their original German or English versions. If needed, you can use these documents as a reference for a local engineer to create a structural calculation that aligns with your country’s specific requirements.

    For a container shelter, an environmental permit may sometimes be required. Whether this is the case depends on various factors, such as where and for how long the container shelter is placed and what it is used for. Please inquire with the local municipality about the requirements.
    To support your permit application, we provide the construction drawings and strength calculations of the products free of charge in the form of the construction manual. This book contains all the technical details and calculations needed for the safety and stability of the shelters. You can request the construction manual free of charge, both online and physically.
    More information about permits can be found in this blog: https://www.kroftman.com/en-eu/do-i-need-a-permit-for-my-container-shelter/

    Yes, our shelters are easy to disassemble and reassemble, even on a different type of container, as long as the correct fastening options are used. If you already know that you have a situation that frequently changes, make sure to keep the crates for easy transportation of the parts. Here is the document for the correct fastening for your new situation.
    https://www.kroftman.com/wp-content/uploads/2025/02/Kroftman-Bevestigingsopties-EN.pdf
    Or read more about it in this blog:
    https://www.kroftman.com/en-eu/is-it-possible-to-use-our-container-shelters-on-open-side-or-office-containers/

    Do you want to create more visibility for your company? Then printing your cover is an excellent option. All bunker silo shelters can be ordered with a printed cover. You have the choice of white PVC as the base material. Upon your request, you will receive a 3D impression of your design. After confirmation of your order, we deliver within 4 weeks.You can easily request a quote through our website or contact us directly for more information.

    Our warehouse in Babberich has a large stock of container shelters, allowing us to process orders quickly. If your order is in stock and payment has been received, we can hand it over to our transport company within two days. This results in a delivery time of approximately one week within the Netherlands, and one to two weeks for deliveries to Germany.
    Watch the video: https://www.kroftman.com/en-eu/do-we-have-all-container-shelters-in-stock/

    For shelters with a length of 12 meters or longer, we supply covers of 6 meters. The design is made so that these covers can be laid end-to-end on the frame using an overlap. This ensures that the shelter remains waterproof

    Yes, we have various attachment options for standard shipping containers, high cube, office containers, and open-side containers. You can view the document with the attachment options here: https://www.kroftman.com/wp-content/uploads/2025/02/Kroftman-Bevestigingsopties-EN.pdf
    Or read more about it in this blog:

    Is it possible to use our container shelters on open side or office containers?

    For orders with a value under €5,000, we require a 100% prepayment. For orders with a higher value, it is possible to pay 50% in advance and the remaining 50% upon delivery. Payment on account is possible if a positive credit rating has been issued. For this, we work with Allianz Trade.

    Roll the cover out on the ground and fold it so that you can easily unroll it over the frame. Attach the cover to one side on top of the container with a rope. Then, throw the rope over the frame to the other side and pull the cover over it.
    For further instructions, please refer to the manual.

    We advise thinking primarily based on your desired situation. With our attachment options, you can combine almost endlessly. Combine multiple containers side by side, on top of each other, in a row, combine one container with a side wall, or place the containers with the doors inward. Watch the video for more inspiration: https://vimeo.com/manage/videos/935463694

    Use the attached packing list to check the composition of your order upon delivery. If you have any doubts about whether everything is present, feel free to contact us.

    Regularly check the tension of the ropes, straps, and wind braces, especially after periods of strong wind or heavy snowfall. Remove snow promptly to prevent overload, as this will contribute to a longer lifespan of your tarp.

    How do I maintain the tarpaulin of my container shelter?

    Our shelters are available in 3 standard colors in PE or PVC. You can also choose a custom cover with your own logo or advertisement. If you want to enclose the shelter completely or partially, choose a front and/or rear wall. Watch the video about the custom cover here.
    https://www.kroftman.com/en-eu/can-i-personalize-my-container-shelter-with-my-company-logo/

    Below is an overview of the average assembly time per shelter.

    Product 2 people 4 people
    CTS 404 & 406 0.5 days
    CTS 412 1 day
    CTS 606 0.5 days
    CTS 612 1 day
    CTS/CTA 806 1 day
    CTS/CTA 812 1.5 days
    CTS/CTA 1012 2 days
    CTS/ CTA 1212 2 days
    CTS/ CTA 1512 2 days

    PVC is stronger than PE and therefore lasts longer. We offer a 3-year warranty for PE and 10 years for PVC. The tensile and tear strength of PVC is almost twice as high. PVC also has flame-retardant properties. In this video, we explain everything in detail: https://www.kroftman.com/en-eu/pe-or-pvc/

    For each frame and tarpaulin, an assembly manual is available. You can find this manual both in the packaging and online, where you can download it per product.

    Yes, our container shelters are designed to withstand high wind and snow loads. Depending on the model, the maximum snow loads range from 0.2 to 0.3 kN/m², and the maximum wind loads range from 0.3 to 0.5 kN/m².
    Our shelters comply with the European standard EN13782, which means they are calculated for combined wind and snow loads for extra safety. In the product specifications, you will find the exact maximum values, as specified in the official structural calculations. We recommend placing the shelter only under conditions that fall within these limits. Installation in areas with higher wind or snow loads is at your own risk.
    https://www.kroftman.com/en-eu/308579/
    Or watch the video: https://www.kroftman.com/en-eu/is-mijn-overkapping-bestand-tegen-wind-en-sneeuwlast/

    That is possible, but please note that the deviation from the dimensions on the drawing can be a maximum of 3 cm. In the manual, you will find the exact dimensions and an explanation of how to measure these dimensions accurately.

    Drawings

    Construction drawings container shelter CTA1512 Arch Roof

    Manuals

    Construction site conditionsCT-A-1512 main frame manualCT-A-1506 / CT-A-1512 main cover manual

    Warranties and certificates

    Test report fabric PVC 610 g/m²European standard EN 13782 for tentsTest report fabric PVC 610 g/m² (DIN4102-1)Test report fabric PVC 610 g/m² (EN 13501-1:2007+A1:2009)Wind speed and resulting wind load
